| Specification |
| Model |

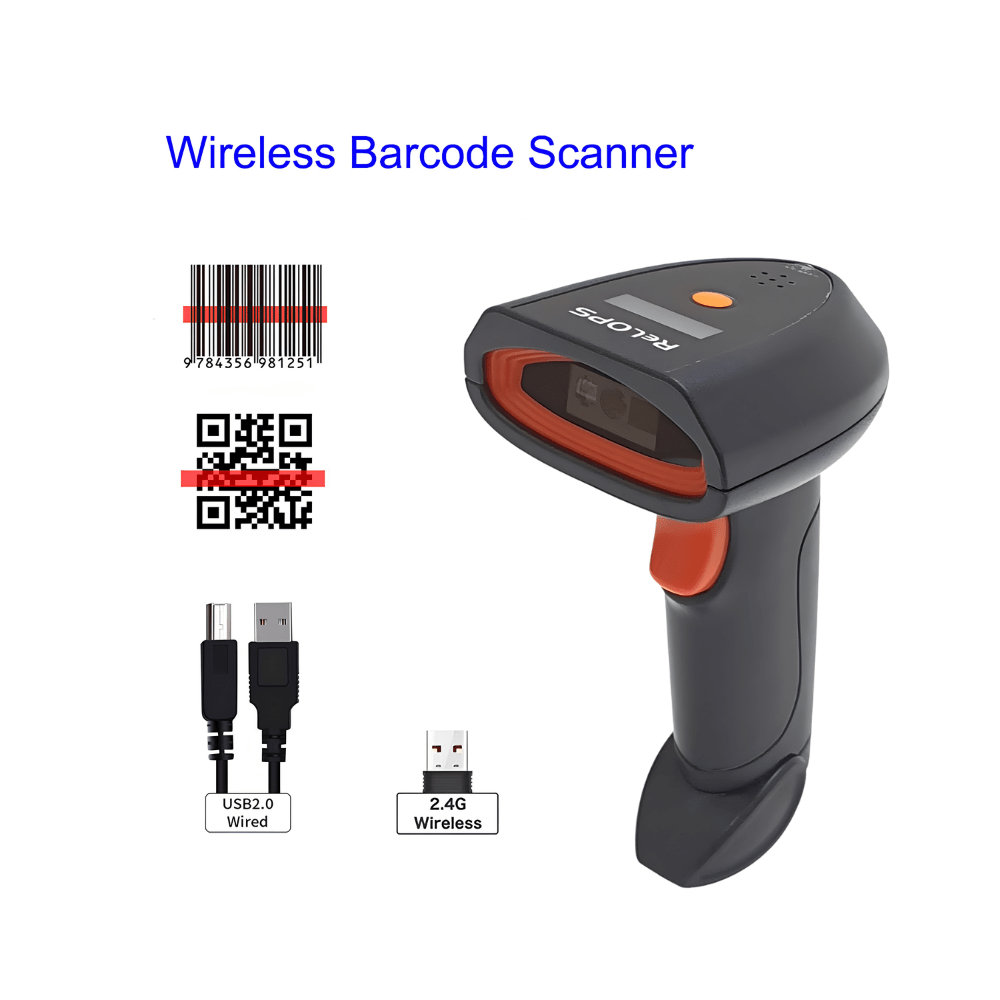

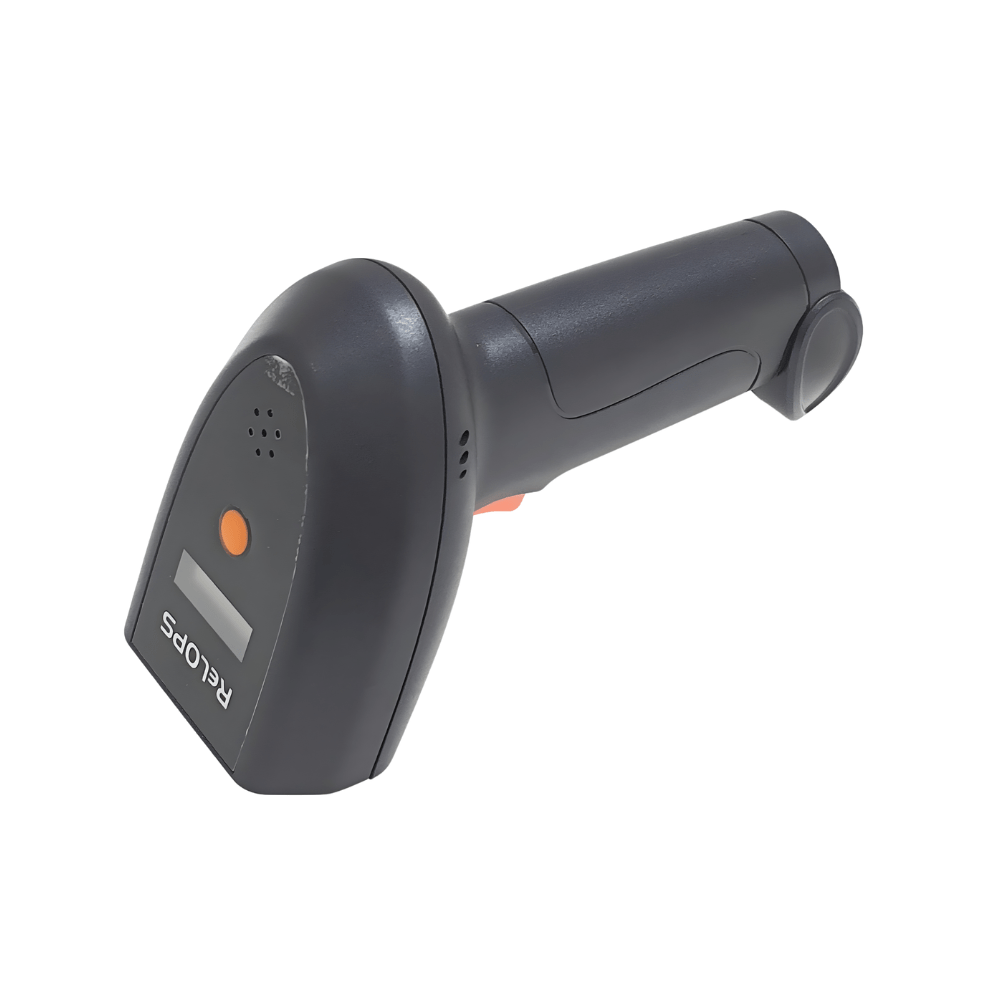

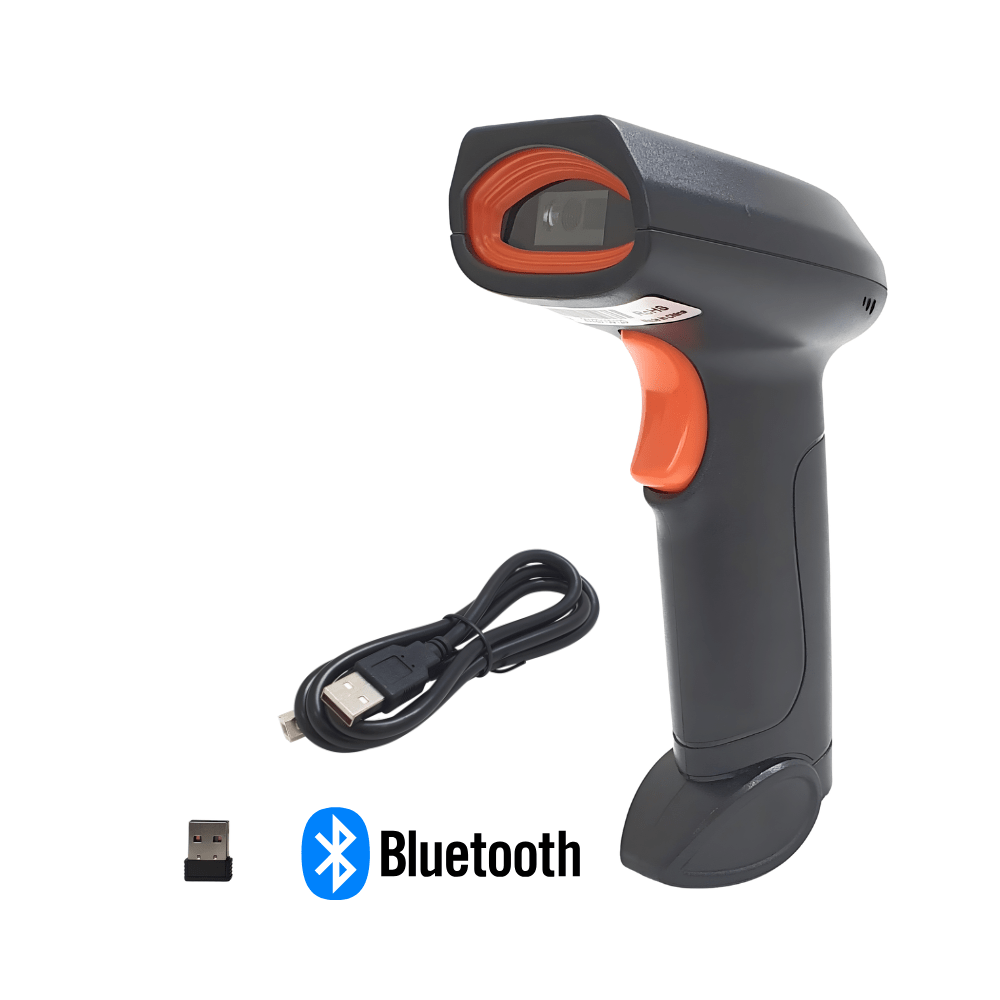

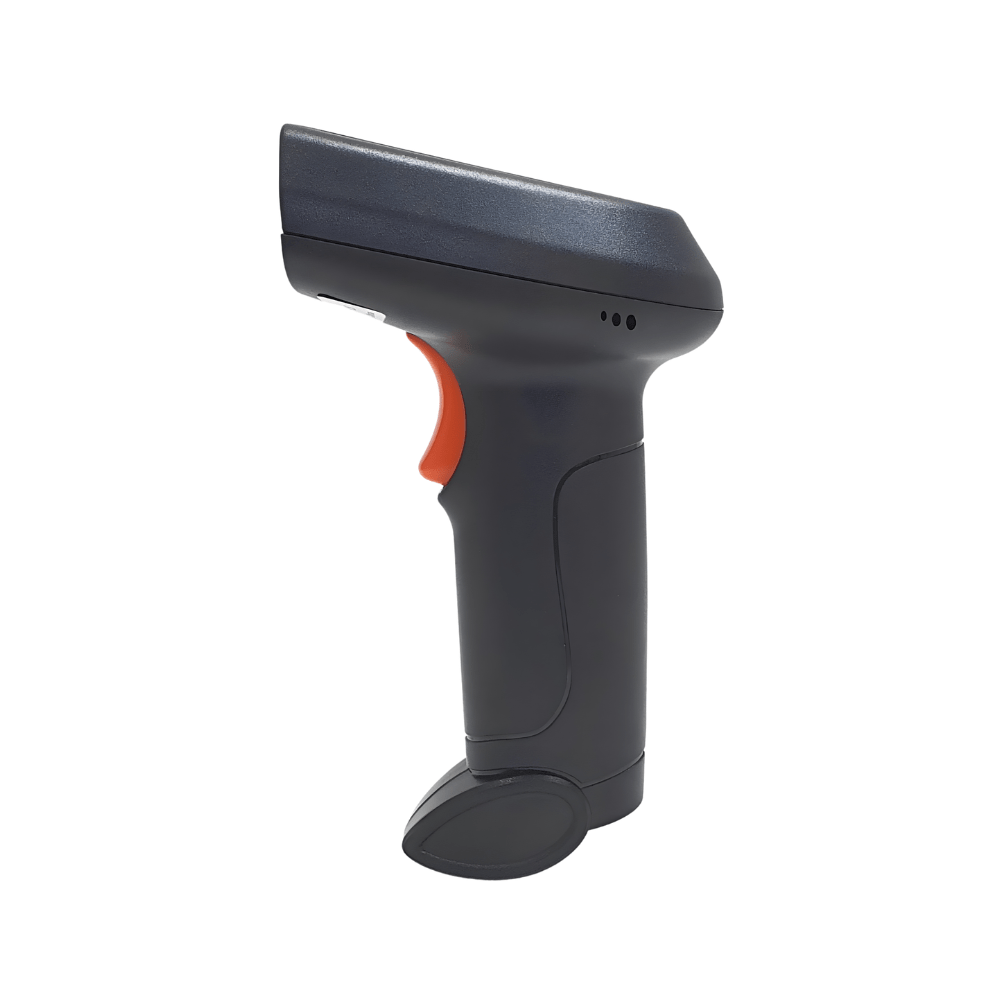

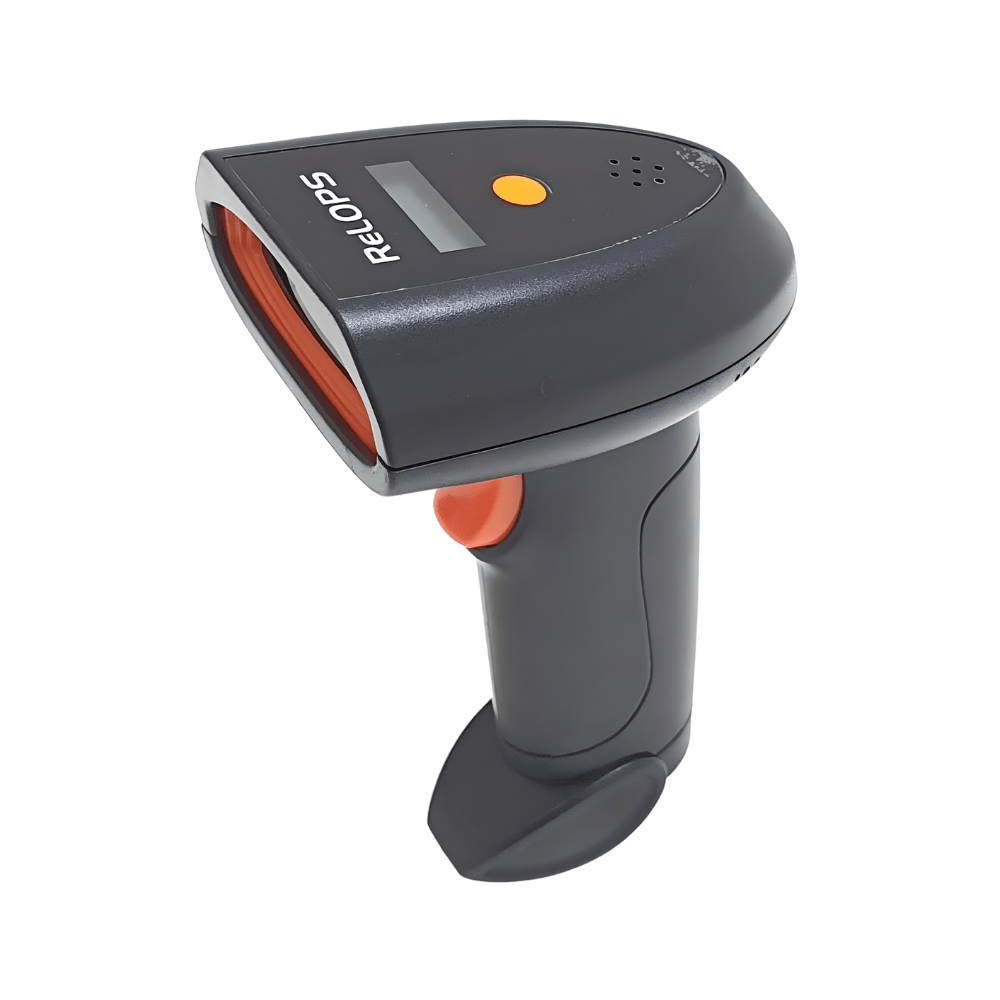

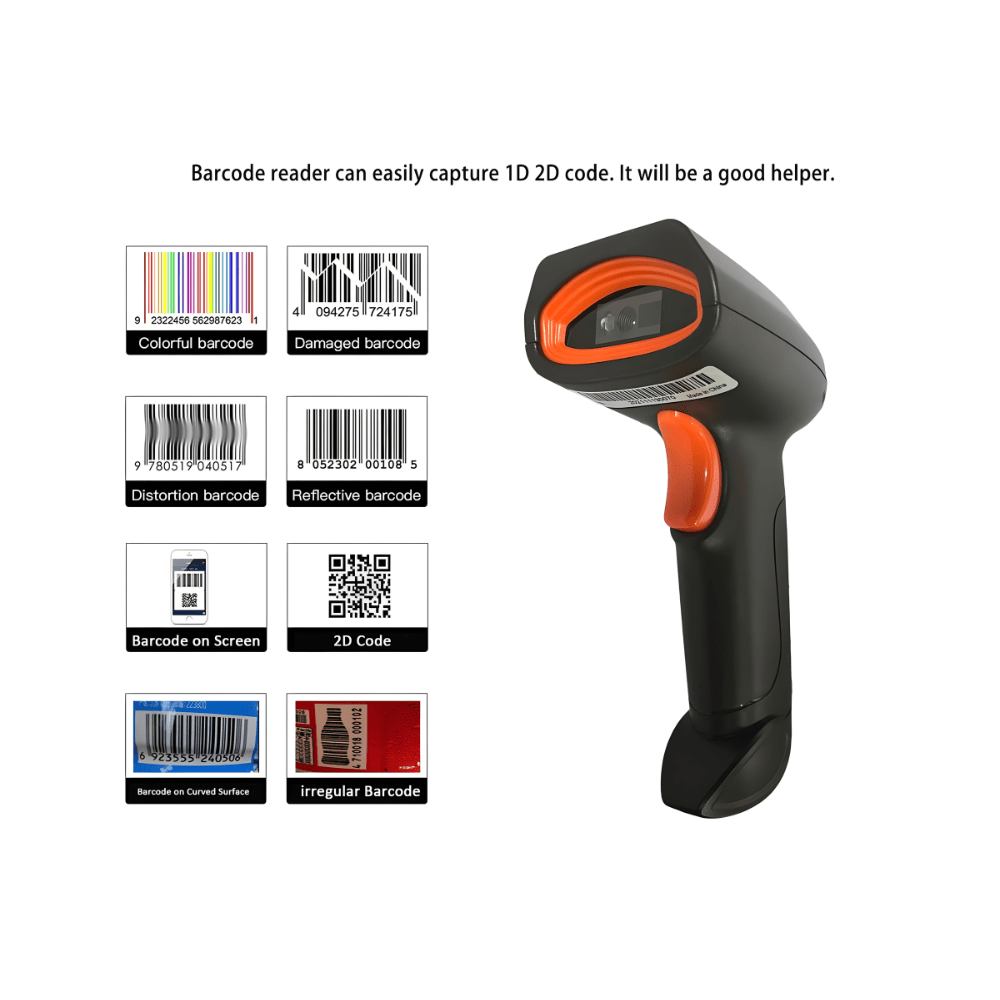

ReLPOSSCU2 (2D) Wireless |
| Input Voltage |
5V+5% |
| Power |
1.60W (working); 0.40W (standby) |
| Current |
120-200mA (working); 10-20mA (standby) |
| Scan angle |
Rotation 360°, inclination ±64°,deflection ±34° |

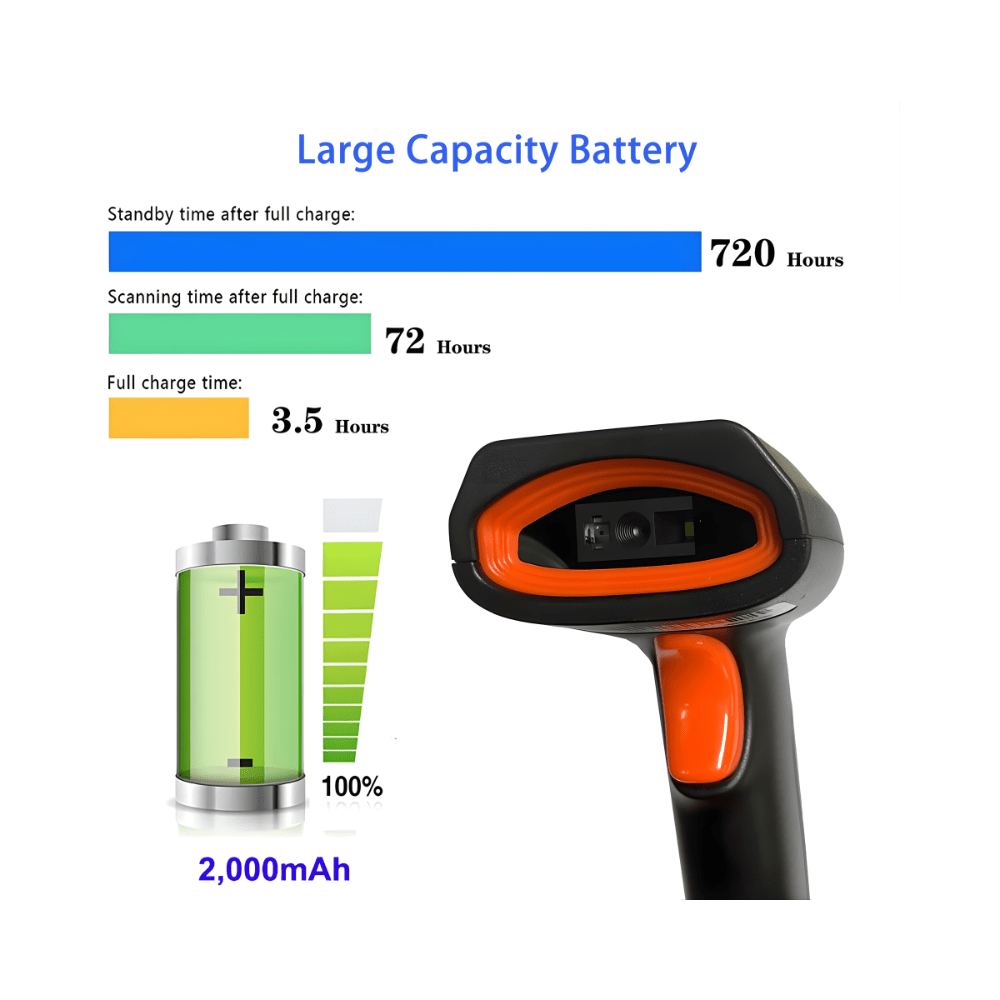

| Battery capacity |
2000mA |
| Read accuracy |
1D:>4 mil, 2D:> 7 mil |
| How to Prompt |
Tips Buzzer, voice broadcast, OLED display |
| The System Interface |
USB keyboard |
| Print contrast |
>30% |
| Packing list |
Scanner x 1, User’s guide x 1, cable x 1; Packaging: neutral carton packing. |
| Wireless |
| Distance |
50-100m |

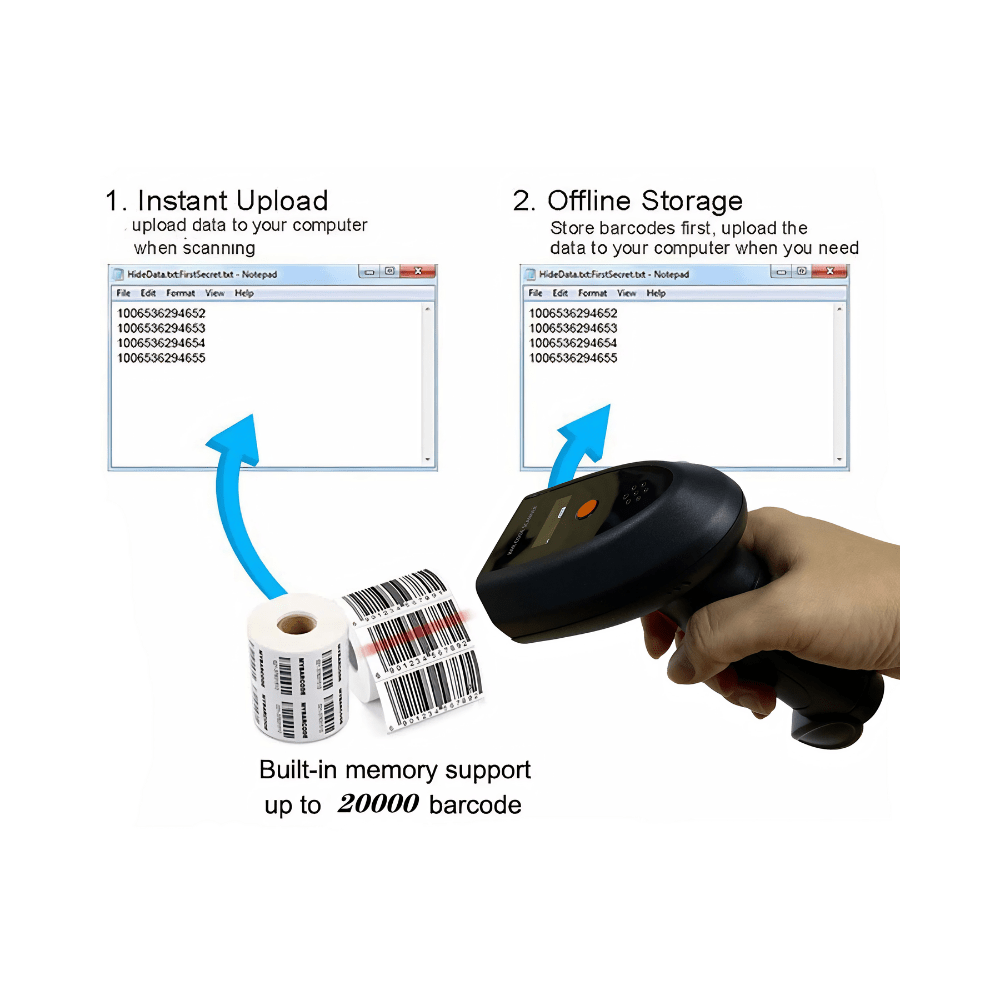

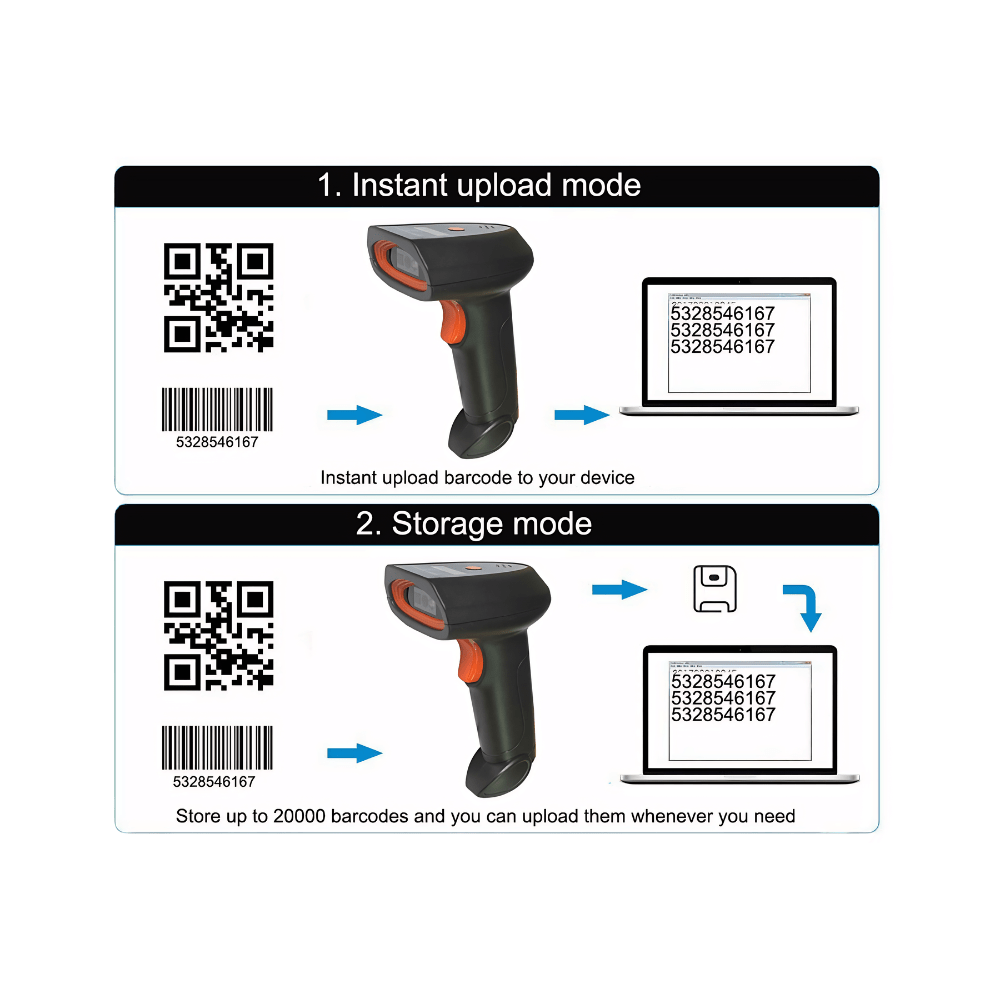

| Storage |
5000-20000 characters |
| Standby |
30 days |
| Continuous working |
72 hours |
| Type of Decoding |
| 1-D |
EAN13, EAN 8, UPC-A, UPC-EO, UPC-EI, Code 128, Code39, Code39, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code 11, CodeBar, MSI, RSS-14, RSS-Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS 1 Composite, etc |
| 2-D |
QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Codel6K, etc. |
| Trigger Mode |
Manual/Auto |
| Appearance Size |
150mmL x 67mmW x 98mmH |
| Weight |
126g (without cable) |
| Cable Standard |
Straight line, 1.55 meters |
| The Type of Interface |
One-in-one line |
| Shell Material |
PC+ABS |
| Temperature |
0°C~50°C (working); -40°C ~ 60°C (storage) |
| Humidity |
5% to 95% (no condensation) |
| How to set it up |
Manual (scan to set barcodes in turn) |
| Resolution |
640×480 COMS |
| Storage Temperature |
-30°C to 70°C |
| Read depth of view |
| 3.5mil |
Code 128(9 characters). | 15mm-35mm |
| 5mil |
Code 39(20 characters). | 33mm-77mm |
| 13mil |
UPC (12 characters). | 17mm-150mm |
| 20mil |
Code39(5 characters). | 55mm-195mm |
| 6.7mil |
PDF417(20 characters). | 25mm-90mm |
| 10mil |
DM(20 characters). | 15mm-115mm |
| 20mil |
QR(20 characters). | 9mm-175mm |
| Level of security |
| EMC Electromagnetic Compatibility |
EN55022, EN55024 |
| Electrical safety |
EN60950-1 |
| Waterproof and dust-proof |
IP54 seal rating |
| Seismic capacity |
5 or more times 1.5 meters of height fell to the cement floor |
