| Specification |
| Model |

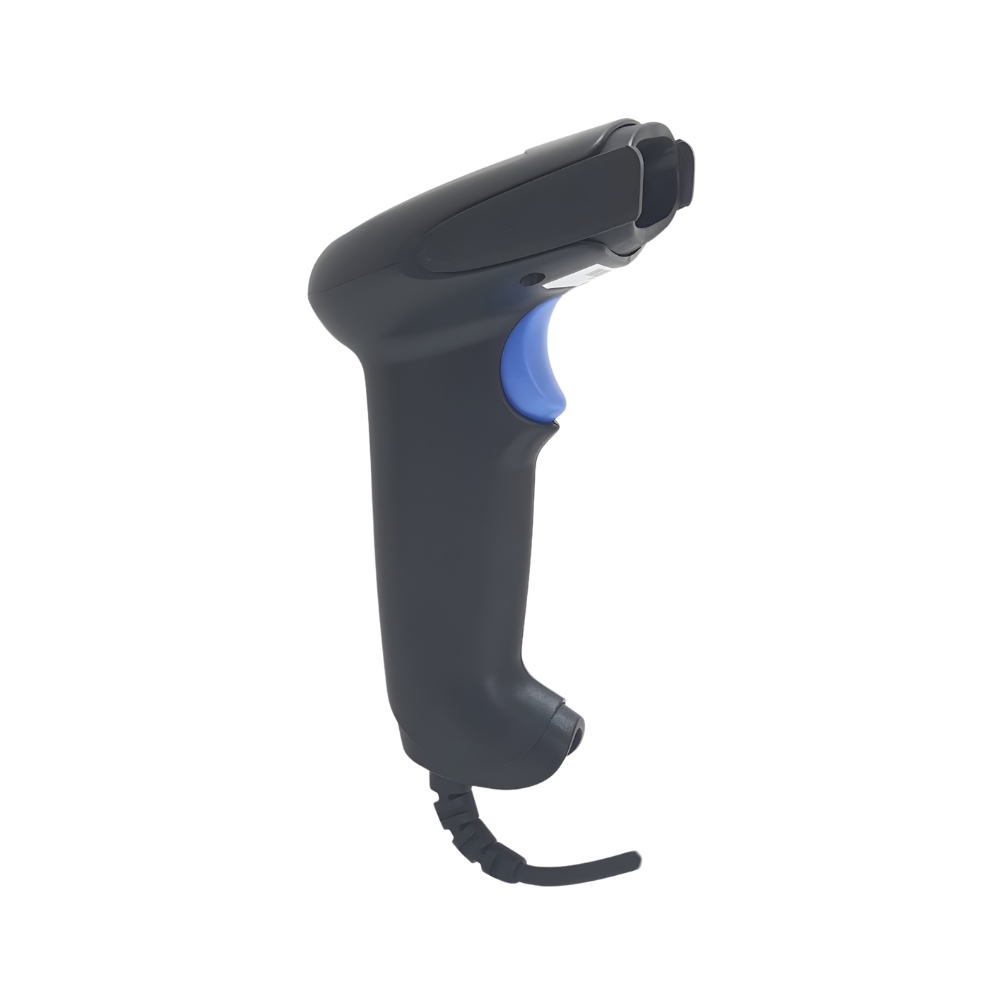

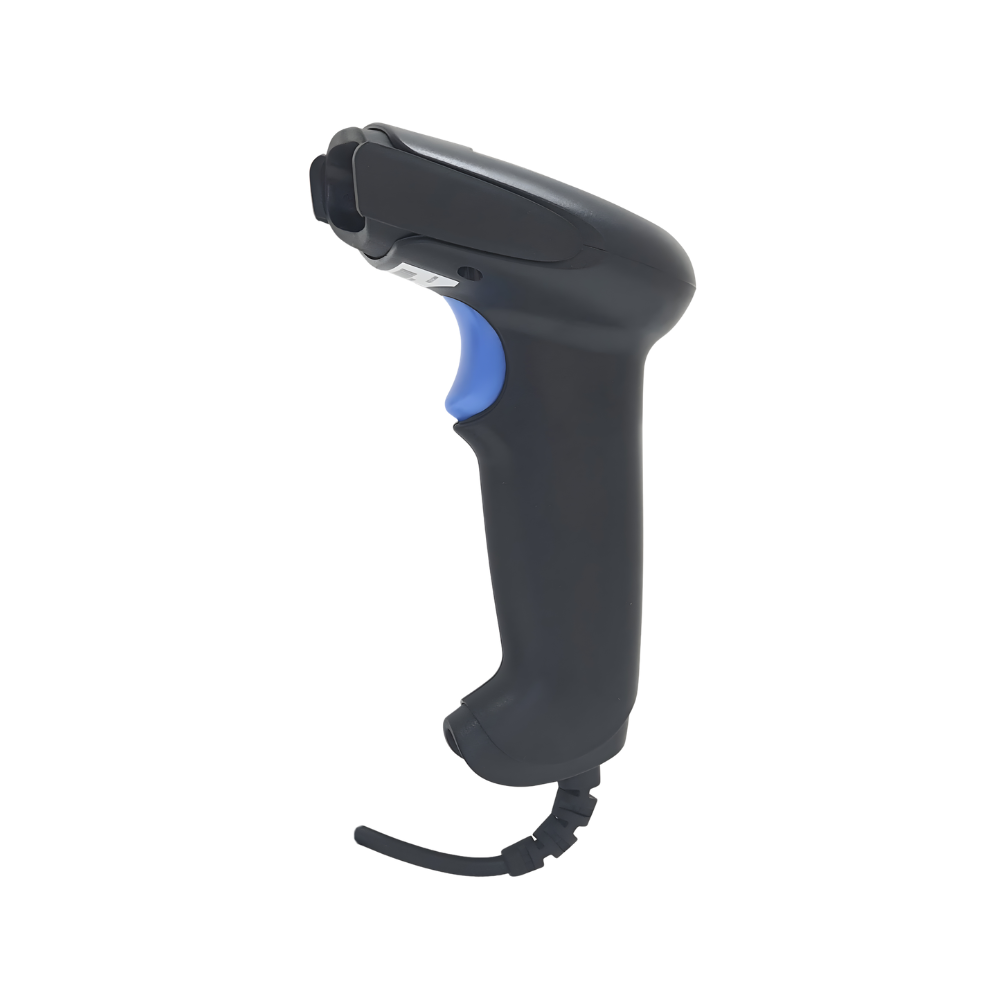

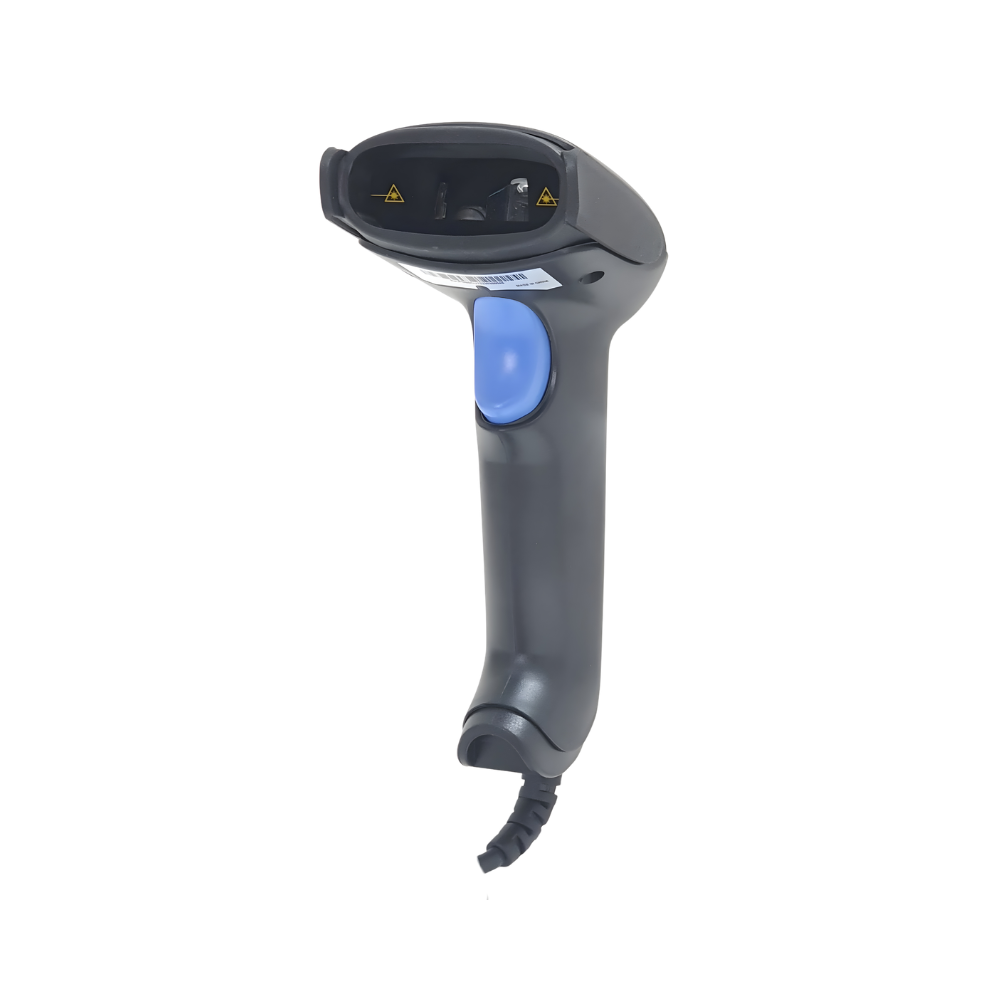

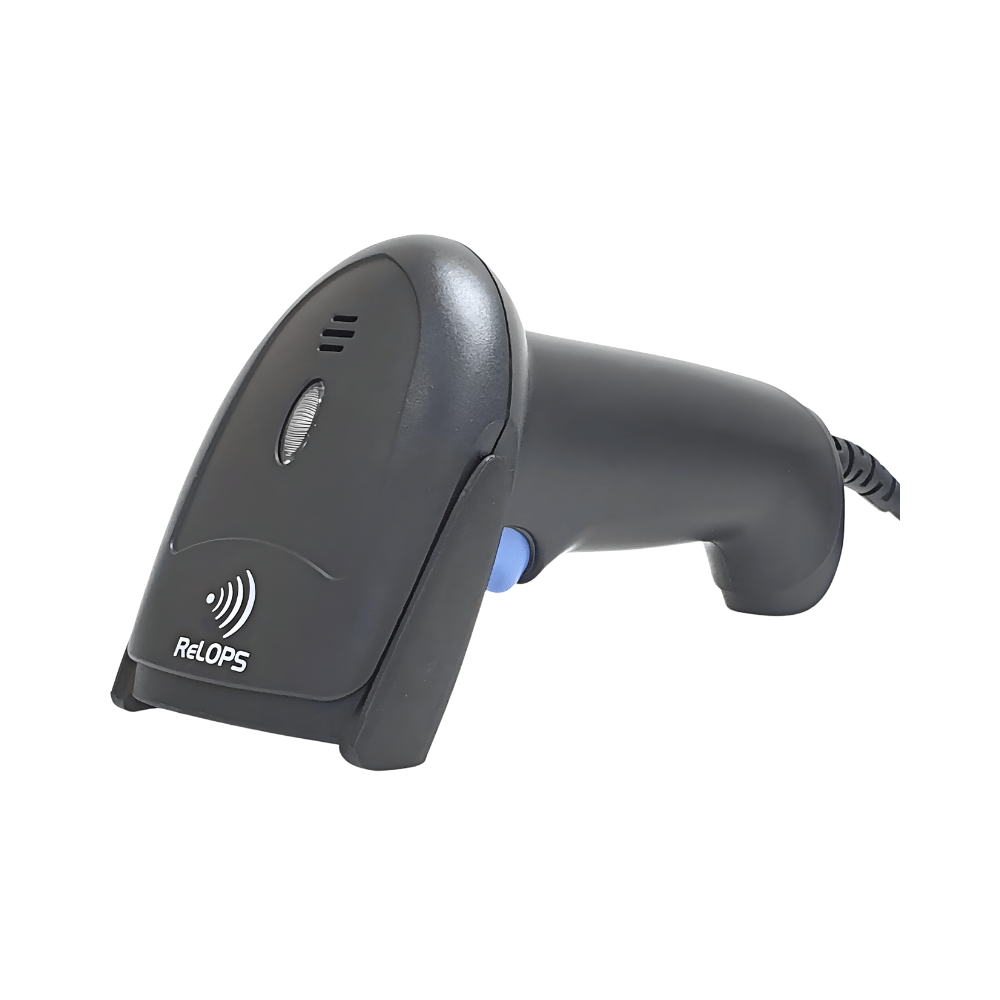

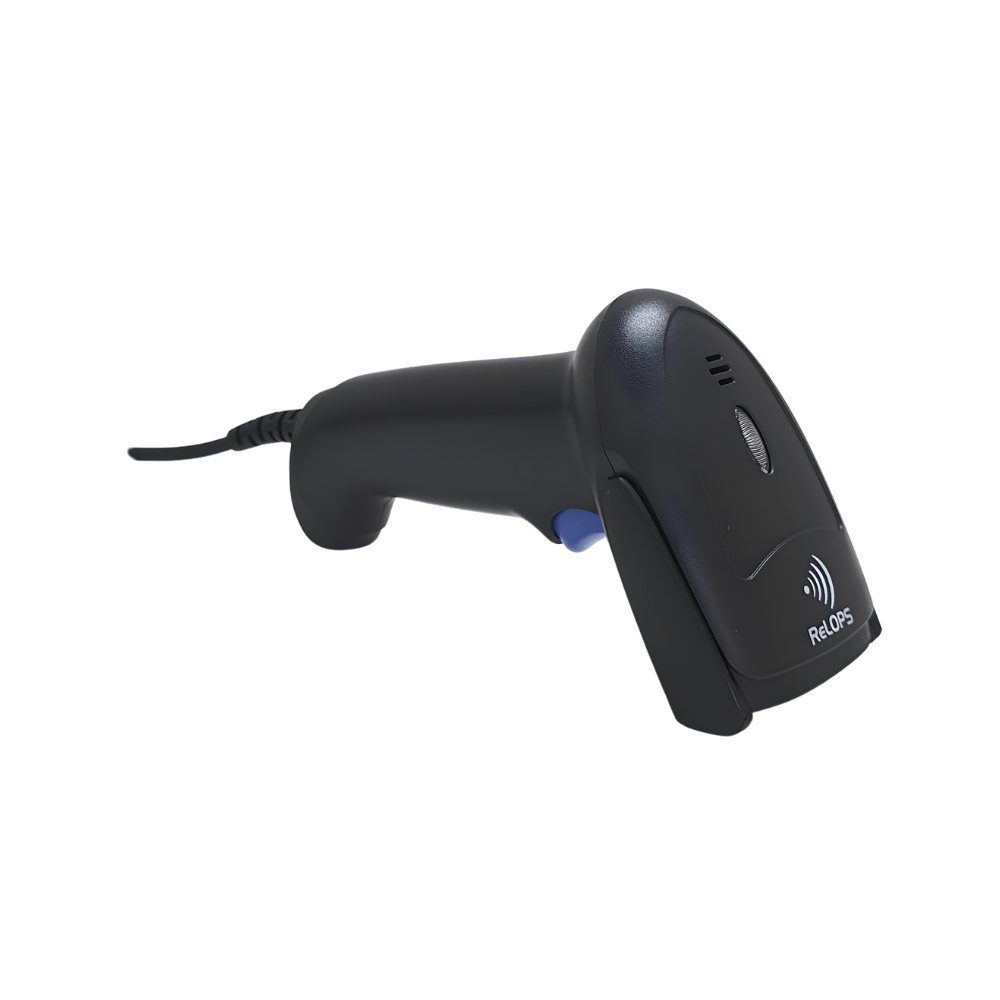

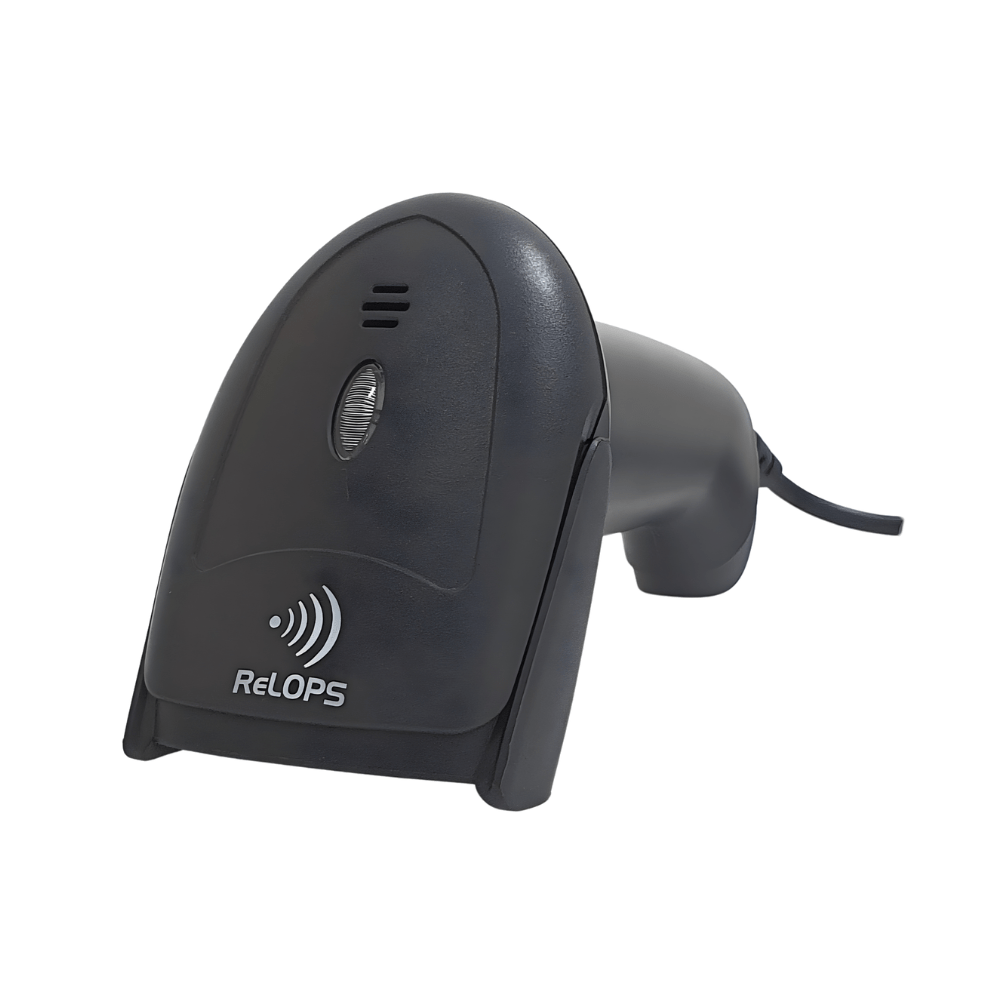

ReLPOSSCU2 (1D) (HANDHELD SCANNER) |
| Material |
ABS+PVC+PC |
| Language |
Multiple languages |
| Interface |
USB |
| Trigger mode |
Manual, Continuous scanning |
| Operating current |
50mA(Operating), 40mA(Stand By), 100mA(Max) |
| Power supply |
DC 5V±5% |
| Quiescent current |
20mA |
| ESD Protection |
15KV air discharge |
| Shock resistance |
1.5m free fall on concrete surface |
| Performance |
| Scan Speed |
200 scans per second |
| Scanning Depth |
2-9cm(0.1mm Width), 3-30cm (0.3mm Width) |
| Width of Scan |
Min 0.1mm(4mils) |
| Print contrast |
25%≥ |
| Scanning Distance |
10-400mm Roll 60°, Pitch45° |
| Light Source |
visible laser 650nm |
| Decode Capability |
1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA25), Codabar (NW-7),etc |
| Physical |
| Physical |
Casing Size 150mm * 70mm * 95mm |
| Environment |
| Environment |
Working temperature& humidity 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity |
-20 to 60 degrees centigrade, 10%~90% No condensation |
